Jayanthi Groups provides a variety of cranes for your complicated and large projects. We are well known for our 24/7 service all throughout the year. We offer on-demand assistance to meet your requirements with regard to cranes. We also provide hassle free transportation to the desired location. Cranes from Jayanthi groups is a low-cost but effective option for your requirements. We recruit operators who are skilled and knowledgeable and capable of performing the work efficiently. We have a diverse fleet of cranes to meet your requirements. Our 40t, 80t, and 100t cranes are truck-mounted telescopic cranes. We are proud as our operations is being spread across the state of Tamil Nadu.

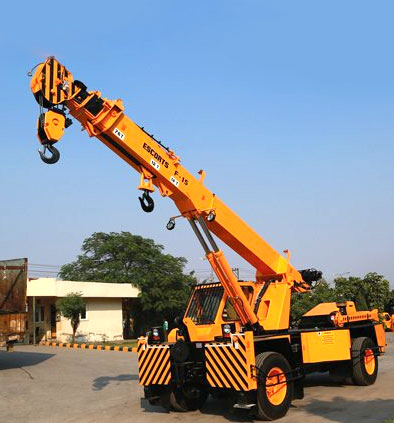

F-15 hydraulic mobile crane has a performance rating of 75% of tipping load along the three axis. Its 25% safety margin makes it the safest crane in its class. This crane has a low maintenance cost & higher resale value. It can travel Long Distance on own Power. It has a heavy-duty hoist winch. It is made of a front mounted cabin with steering wheel Slotted Boom with Self Compensating Snatch block new technology control valve for precision handling dragging winch with Outriggers , Safe Load Indicator with Hydraulic cut-off which are both optional.
Sany truck crane is a U-type boom with five sections with fully extended length of 50 meters; The lifting performance is excellent thanks to the 8m outrigger span and 15.65t counterweight
Hydraulic system with load sensing, imported oil pump, and hoist motor allow precise swing control (0.1 °/s) and hoist speed control (1.5 m/min). Compound movement can be smoothed with intelligent flow compensation, resulting in 20% more flow usage. A comparison of the electronic control system to the hydraulic system shows that the electronic control system uses 15% less energy during operation while increasing work efficiency by 30%. By using a hydraulic system that is intelligently flow and pressure compensated, smooth, predictable multi-function operation can be achieved at up to a 20% increase in pump flow.
The 4-section 35.2m rounded boom is made of high tensile steel, which allows for decreased boom weight and increased boom strength.
To ensure maximum work capacity in all areas of the crane, the AML automatically detects the extension width of all outriggers at the front, rear, and left and right of the crane when the crane's asymmetric outriggers are extended. AML automatically detects the motion of a boom as it swings from the long outrigger area to the short outrigger area, displays its maximum capacity based on each extension width of an outrigger, and slows down the motion before it reaches its maximum limit. Therefore, even in the case of operator error, the AML's slow stop function will help to minimize any safety risk.

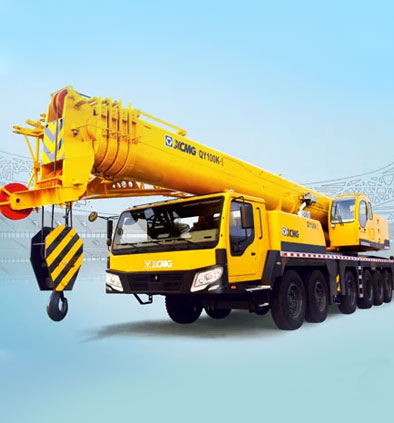

XCT100 Truck crane is widely used for the lifting operations in general engineering projects, such as construction site, urban renewal, communication and transportation, ports, bridge, oilfields and mine, and complex working environments. It has a 6-section boom of 64 m with U-type profile is adopted; the max. lifting load is 100 t; the max. lifting height is 92.6 m; the max. working radius is 62 m; The performance takes the lead comprehensively. Low speed large torque power transmission system, contributes to perfect combination of optimal power and optimal economical efficiency, leading to more than 12% reduction in fuel consumption and 10% improvement in grade ability. XCT100 is also the first four-wheel driven truck crane domestically, which can meet the need under various road conditions. Chassis rear hydraulic controlled follow-up steering technology, retaliate highway and small turning two steering modes, ensure stable and reliable of vehicle at high speed, travelling at lower speed is flexible.

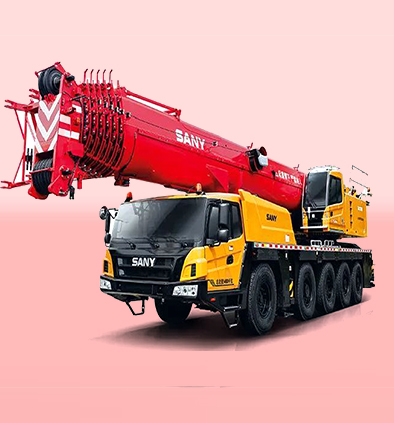

The SANY SAC1600S is a versatile and powerful crane that is ideal for a wide range of lifting applications, including construction, industrial, marine, and disaster relief. It is easy to transport and set up, has a long service life, and is backed by a comprehensive warranty. It is powered by a 450kW diesel engine and has a maximum lifting capacity of 160t. The crane has a 60m main boom and a 100m luffing jib, and it can lift loads up to 120m high. The SAC1600S is equipped with a number of features that make it a safe and efficient machine to operate, including a load limiter, an anti-two-block device, and an automatic boom swing controller. The crane also has a comfortable operator's cab that is equipped with climate control and a full range of instrumentation. The SANY SAC1600S is a reliable and efficient machine that is built to last. Chassis rear hydraulic controlled follow-up steering technology provides stable and reliable operation at high speeds and flexible operation at low speeds.
